ByteDance LLM Application Go Framework — Eino in Practice

Preface

Building LLM-powered applications is like coaching a football team: components are players, orchestration is the strategy, and data is the ball flowing through the team. Eino is ByteDance’s open-source framework for LLM application development — stable core, flexible extensions, full tooling, and battle-tested in real apps like Doubao and TikTok. Picking up Eino feels like inheriting a strong team: even a new coach can lead a meaningful game quickly.

Let’s kick off the ramp-up journey.

Meet the Players

Eino applications are built from versatile components:

Each abstraction defines input/output types, options, and method signatures:

type ChatModel interface {
    Generate(ctx context.Context, input []*schema.Message, opts ...Option) (*schema.Message, error)
    Stream(ctx context.Context, input []*schema.Message, opts ...Option) (*schema.StreamReader[*schema.Message], error)
    BindTools(tools []*schema.ToolInfo) error
}

Implementations make them concrete:

Decide the abstraction first (“we need a forward”), then pick an implementation (“who plays forward”). Components can be used standalone, but Eino shines when components are orchestrated.

Plan the Strategy

In Eino, each component becomes a Node; 1→1 connections are Edges; N→1 conditional flow is a Branch. Orchestration supports rich business logic:

Chain: simple ChatTemplate → ChatModel chain.

chain, _ := NewChain[map[string]any, *Message]().
           AppendChatTemplate(prompt).
           AppendChatModel(model).
           Compile(ctx)
chain.Invoke(ctx, map[string]any{"query": "what's your name?"})

Graph: an agent that makes at most one tool call.

graph := NewGraph[map[string]any, *schema.Message]()
_ = graph.AddChatTemplateNode("node_template", chatTpl)
_ = graph.AddChatModelNode("node_model", chatModel)
_ = graph.AddToolsNode("node_tools", toolsNode)
_ = graph.AddLambdaNode("node_converter", takeOne)
_ = graph.AddEdge(START, "node_template")
_ = graph.AddEdge("node_template", "node_model")
_ = graph.AddBranch("node_model", branch)
_ = graph.AddEdge("node_tools", "node_converter")
_ = graph.AddEdge("node_converter", END)
compiledGraph, err := graph.Compile(ctx)
out, err := compiledGraph.Invoke(ctx, map[string]any{"query":"Beijing's weather this weekend"})

Operational Tools

Callbacks capture node start/end (and stream variants) for cross-cutting concerns like logging, tracing, metrics:

handler := NewHandlerBuilder().
  OnStartFn(func(ctx context.Context, info *RunInfo, input CallbackInput) context.Context {
      log.Printf("onStart, runInfo: %v, input: %v", info, input); return ctx }).
  OnEndFn(func(ctx context.Context, info *RunInfo, output CallbackOutput) context.Context {
      log.Printf("onEnd, runInfo: %v, out: %v", info, output); return ctx }).
  Build()
compiledGraph.Invoke(ctx, input, WithCallbacks(handler))

Call options target all nodes, nodes of a specific type, or a specific node:

compiledGraph.Invoke(ctx, input, WithCallbacks(handler))
compiledGraph.Invoke(ctx, input, WithChatModelOption(model.WithTemperature(0.5)))
compiledGraph.Invoke(ctx, input, WithCallbacks(handler).DesignateNode("node_1"))

Streaming Mastery

Some components output streams (fragments of a final value), others consume streams. Components implement the paradigms that match real business semantics:

// ChatModel supports Invoke and Stream
type ChatModel interface {
    Generate(ctx context.Context, input []*Message, opts ...Option) (*Message, error)
    Stream(ctx context.Context, input []*Message, opts ...Option) (*schema.StreamReader[*Message], error)
}

// Lambda can implement any of the four
type Invoke[I, O, TOption any] func(ctx context.Context, input I, opts ...TOption) (O, error)
type Stream[I, O, TOption any] func(ctx context.Context, input I, opts ...TOption) (*schema.StreamReader[O], error)
type Collect[I, O, TOption any] func(ctx context.Context, input *schema.StreamReader[I], opts ...TOption) (O, error)
type Transform[I, O, TOption any] func(ctx context.Context, input *schema.StreamReader[I], opts ...TOption) (*schema.StreamReader[O], error)

Orchestration automatically handles:

1. Concat streams when downstream only accepts non-streaming.
2. Box non-streaming values into single-frame streams when downstream expects streaming.
3. Merge/copy streams as needed.

A Scrimmage — Eino Assistant

Goal: retrieve from a knowledge base and use tools as needed. Tools:

• DuckDuckGo search
• EinoTool (repo/docs metadata)
• GitClone (clone repo)
• TaskManager (add/view/delete tasks)
• OpenURL (open links/files)

Two parts:

• Knowledge Indexing: split/encode Markdown docs into vectors
• Eino Agent: decide actions, call tools, iterate until the goal is met

Workflow

Knowledge Indexing

Eino Agent

Required Tools

Indexing the Knowledge Base

Sample repository path: https://github.com/cloudwego/eino-examples/tree/main/quickstart/eino_assistant

Below, paths are relative to this directory

Build a CLI that recursively traverses Markdown files, splits them by headings, vectorizes each chunk with Doubao embedding, and stores vectors in Redis VectorStore.

Command-line tool directory: cmd/knowledgeindexing

Markdown docs directory: cmd/knowledgeindexing/eino-docs

Use EinoDev (GoLand/VS Code) to visually compose the core workflow, then generate code into eino_assistant/eino/knowledgeindexing. After generation, complete the constructors for each component and call BuildKnowledgeIndexing in your business code to build and use the Eino Graph instance.

Model Resources

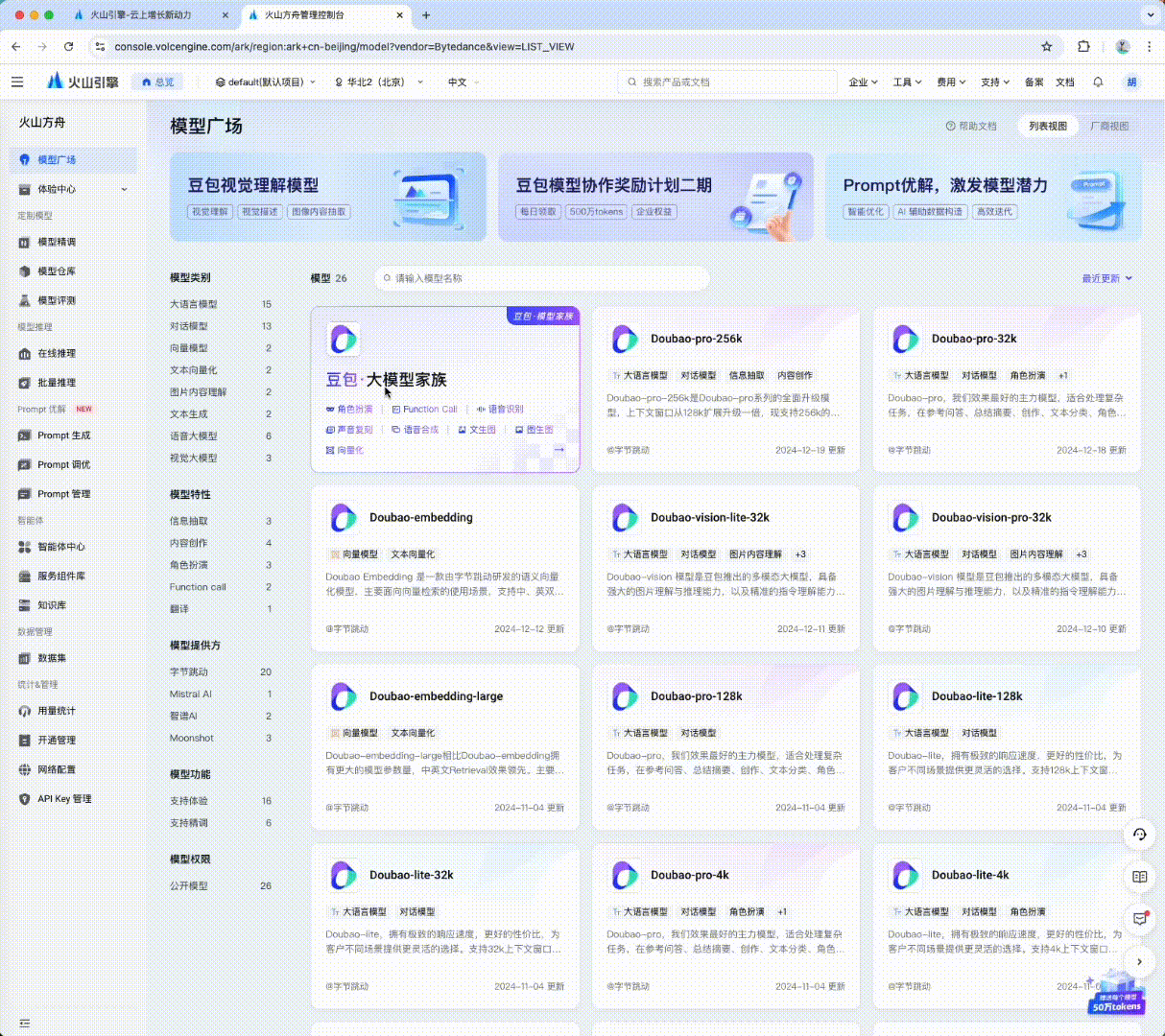

Volcengine Ark hosts Doubao models. Register resources (ample free quota available):

• Create doubao-embedding-large for indexing
• Create doubao-pro-4k for chat/agent reasoning
• Console: https://console.volcengine.com/ark

Start Redis Stack

Use Redis Stack as the vector database. The sample provides a quick Docker setup:

• eino-examples/quickstart/eino_assistant/docker-compose.yml
• Initial Redis data under eino-examples/quickstart/eino_assistant/data

Start with the official Redis Stack image:

# Switch to eino_assistant
cd xxx/eino-examples/quickstart/eino_assistant

docker-compose up -d

• After startup, open http://127.0.0.1:8001 for the Redis Stack web UI

Visual Orchestration

Visual orchestration lowers the learning curve and speeds up development. Experienced users can skip and build directly with Eino APIs.

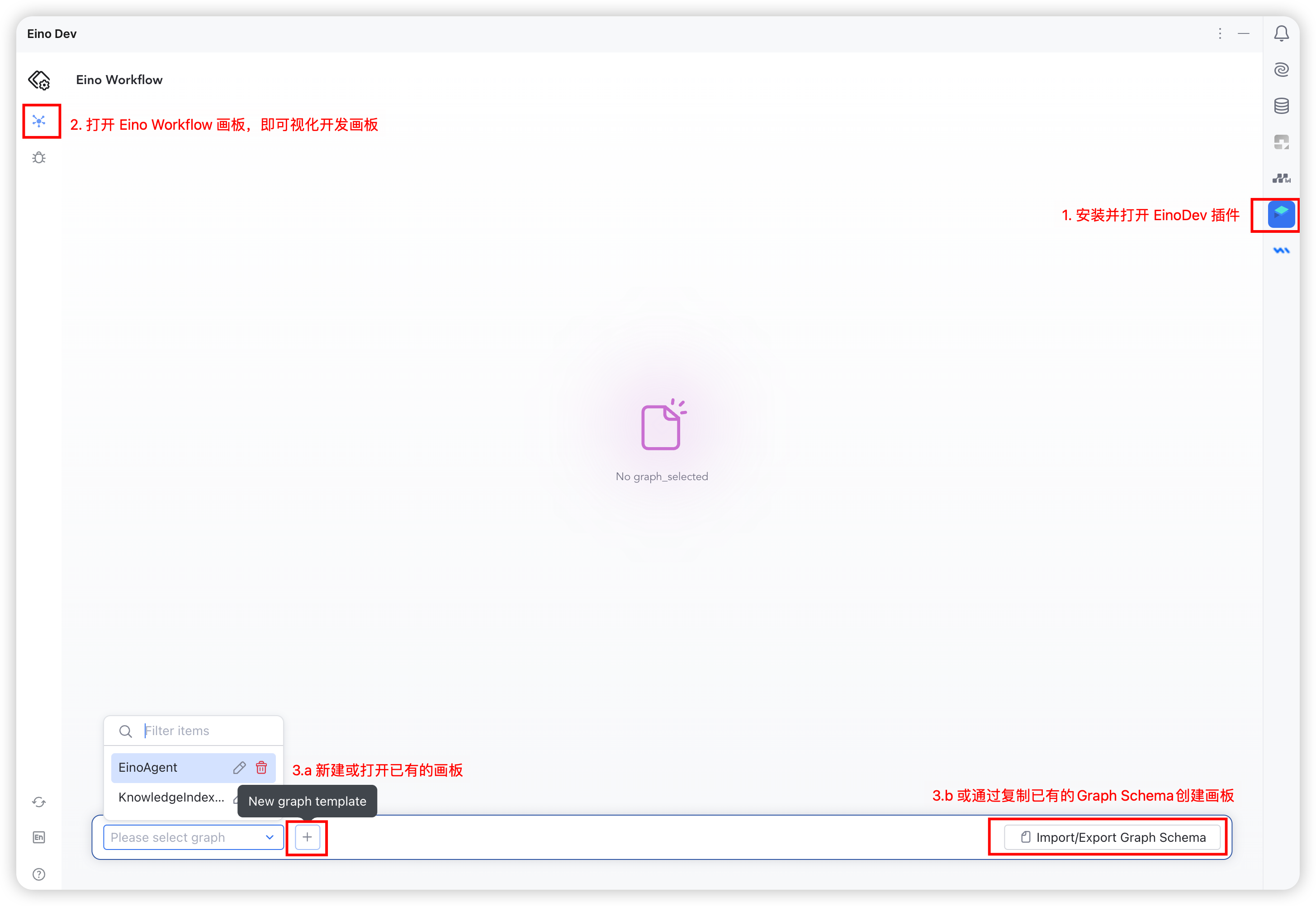

1. Install EinoDev and open the Eino Workflow panel

   • Installation: /docs/eino/core_modules/devops/ide_plugin_guide

   • Graph name: KnowledgeIndexing

   • Node trigger mode: triggered after all predecessor nodes are executed

   • Input type: document.Source

   • Input type import path: github.com/cloudwego/eino/components/document

   • Output type: []string

   • Others: empty



2. Select the needed components per the indexing flow:

   • document/loader/file: load files from URI into schema.Document[]
   • document/transformer/splitter/markdown: split content into suitable chunk sizes
   • indexer/redis: store raw text and index fields in Redis Vector DB
   • embedding/ark: compute embeddings via Ark

3. Compose the topology and click “Generate Code” to a target directory

   • Generate to: eino_assistant/eino/knowledgeindexing
   • You can copy the graph schema from eino/knowledge_indexing.json

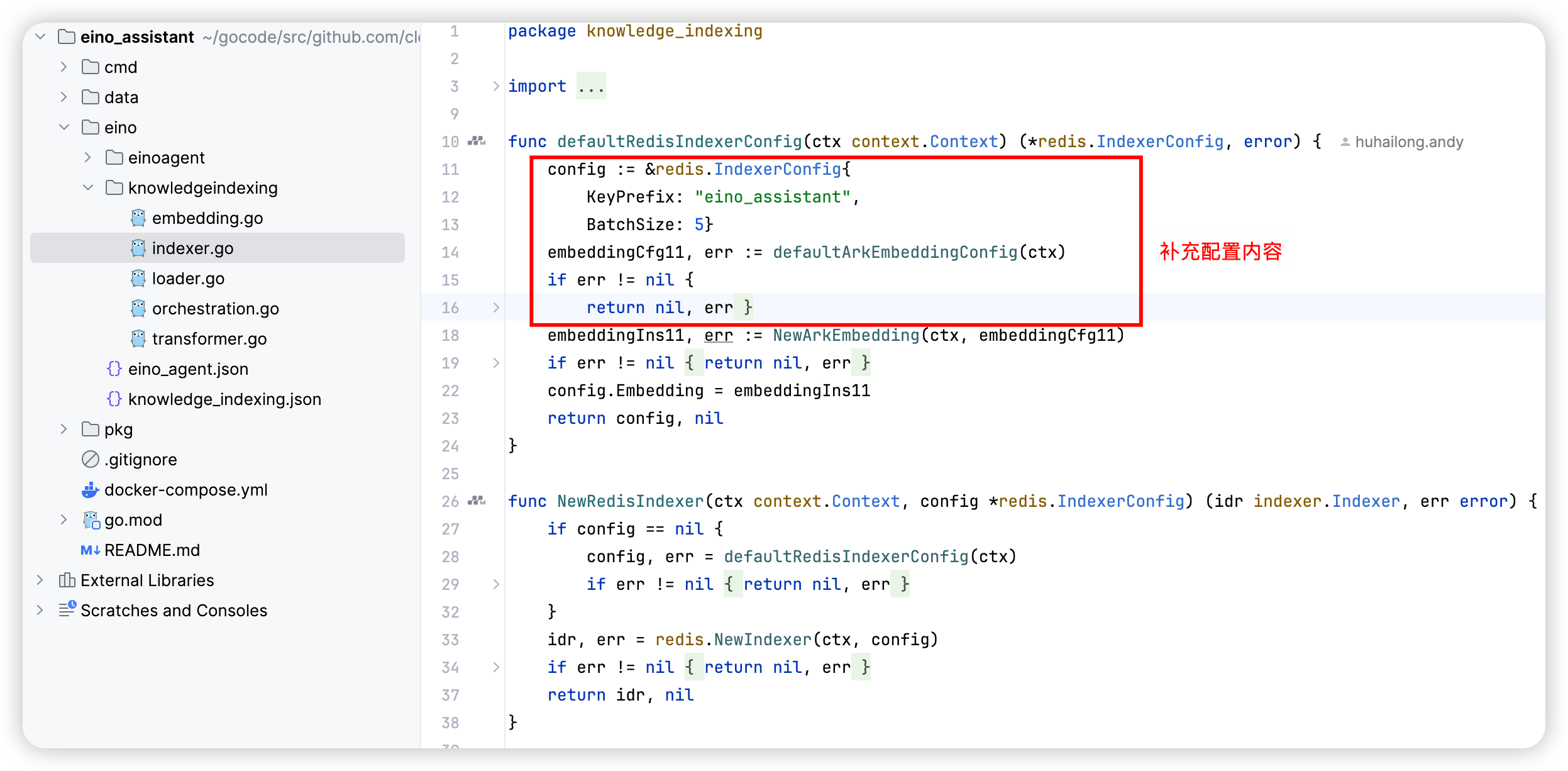

4. Complete each component’s constructor with the required configuration

5. Call BuildKnowledgeIndexing from your business code

Polish the Code

Generated code may need manual review. The core function is BuildKnowledgeIndexing(). Wrap it in a CLI that reads model configuration from environment variables, initializes the graph config, scans the Markdown directory, and performs indexing.

See: cmd/knowledgeindexing/main.go

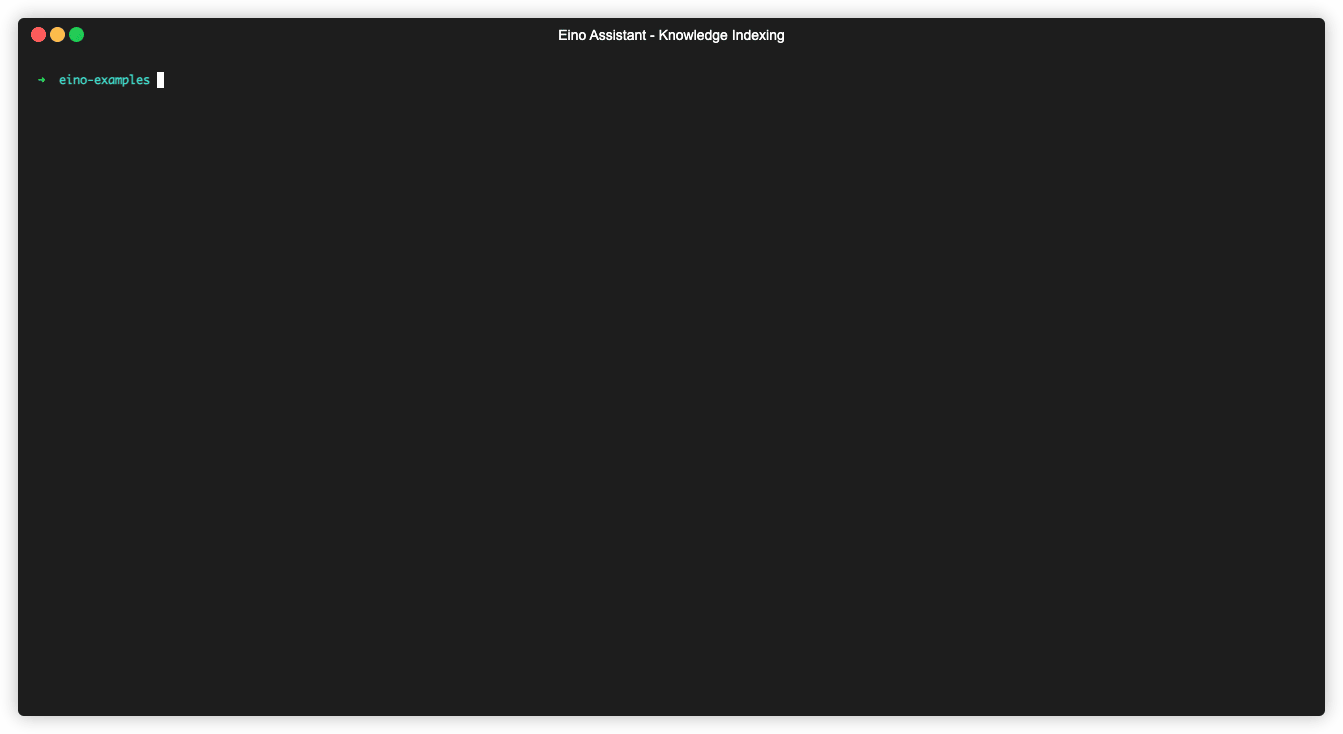

Run

The sample already ships with part of the Eino docs pre-indexed in Redis.

1. Populate .env with ARK_EMBEDDING_MODEL and ARK_API_KEY, then:

cd xxx/eino-examples/quickstart/eino_assistant

# Load env vars (model info, tracing platform info)
source .env

# The sample Markdown lives in cmd/knowledgeindexing/eino-docs.
# Because the code uses the relative path "eino-docs", run from cmd/knowledgeindexing
cd cmd/knowledgeindexing
go run main.go

2. After success, open the Redis web UI to inspect the indexed vectors:

http://127.0.0.1:8001

Eino Agent

Sample repository path: https://github.com/cloudwego/eino-examples/tree/main/quickstart/eino_assistant

Build a typical RAG ReAct agent that retrieves context from Redis VectorStore, answers user questions, and executes actions such as task management, repo cloning, and opening links.

Model Resources

Reuse doubao-embedding-large and doubao-pro-4k created earlier.

Start RedisSearch

Reuse the Redis Stack from the indexing section.

Visual Orchestration

1. In EinoDev → Eino Workflow, create a canvas:

   • Graph name: EinoAgent
   • Node trigger mode: trigger when any predecessor finishes
   • Input type name: *UserMessage
   • Input package path: ""
   • Output type name: *schema.Message
   • Output import path: github.com/cloudwego/eino/schema
   • Others: empty

2. Choose components:

   • lambda: wrap func(ctx context.Context, input I) (O, error) as nodes
     • Convert *UserMessage → map[string]any for ChatTemplate
     • Convert *UserMessage → query string for RedisRetriever
   • retriever/redis: retrieve schema.Document[] by semantic similarity
   • prompt/chatTemplate: construct prompts from string templates with substitutions
   • flow/agent/react: decide next actions with tools and ChatModel
   • model/ark: Doubao chat model for ReAct reasoning
   • Tools: DuckDuckGo, EinoTool, GitClone, TaskManager, OpenURL

3. Generate code to eino/einoagent; you can copy from eino/eino_agent.json

4. Complete constructors with required configuration

5. Call BuildEinoAgent from your business code

Polish the Code

BuildEinoAgent constructs a graph that, given user input and history, retrieves context from the knowledge base and iteratively decides whether to call a tool or produce the final answer.

Wrap the agent as an HTTP service:

Run

cd eino-examples/eino_assistant

# Load env vars (model info, tracing platform info)
source .env

# Run from eino_assistant to use the embedded data directory
go run cmd/einoagent/*.go

Open the web UI:

http://127.0.0.1:8080/agent/

Observability (Optional)

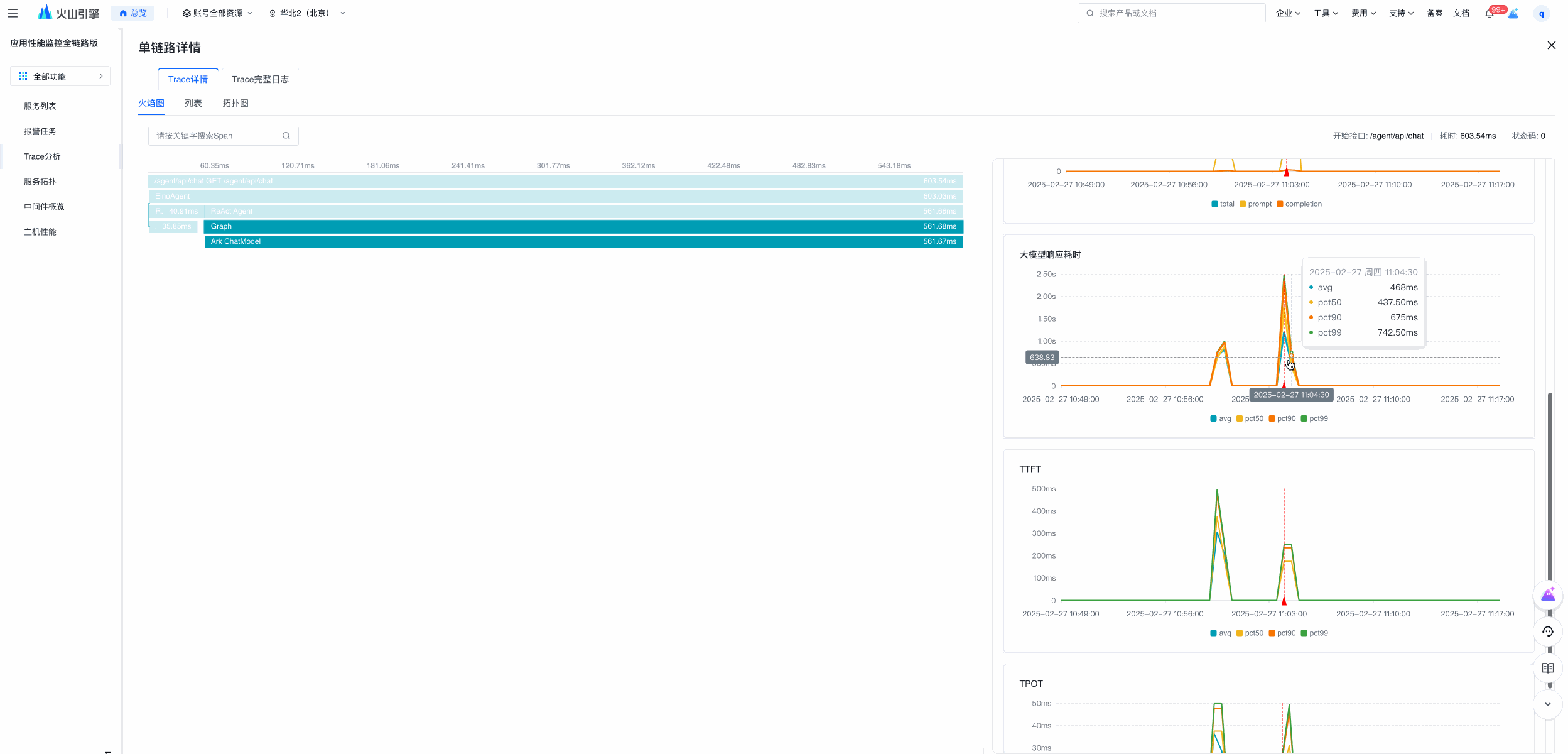

• APMPlus: set APMPLUS_APP_KEY in .env and view traces/metrics at https://console.volcengine.com/apmplus-server

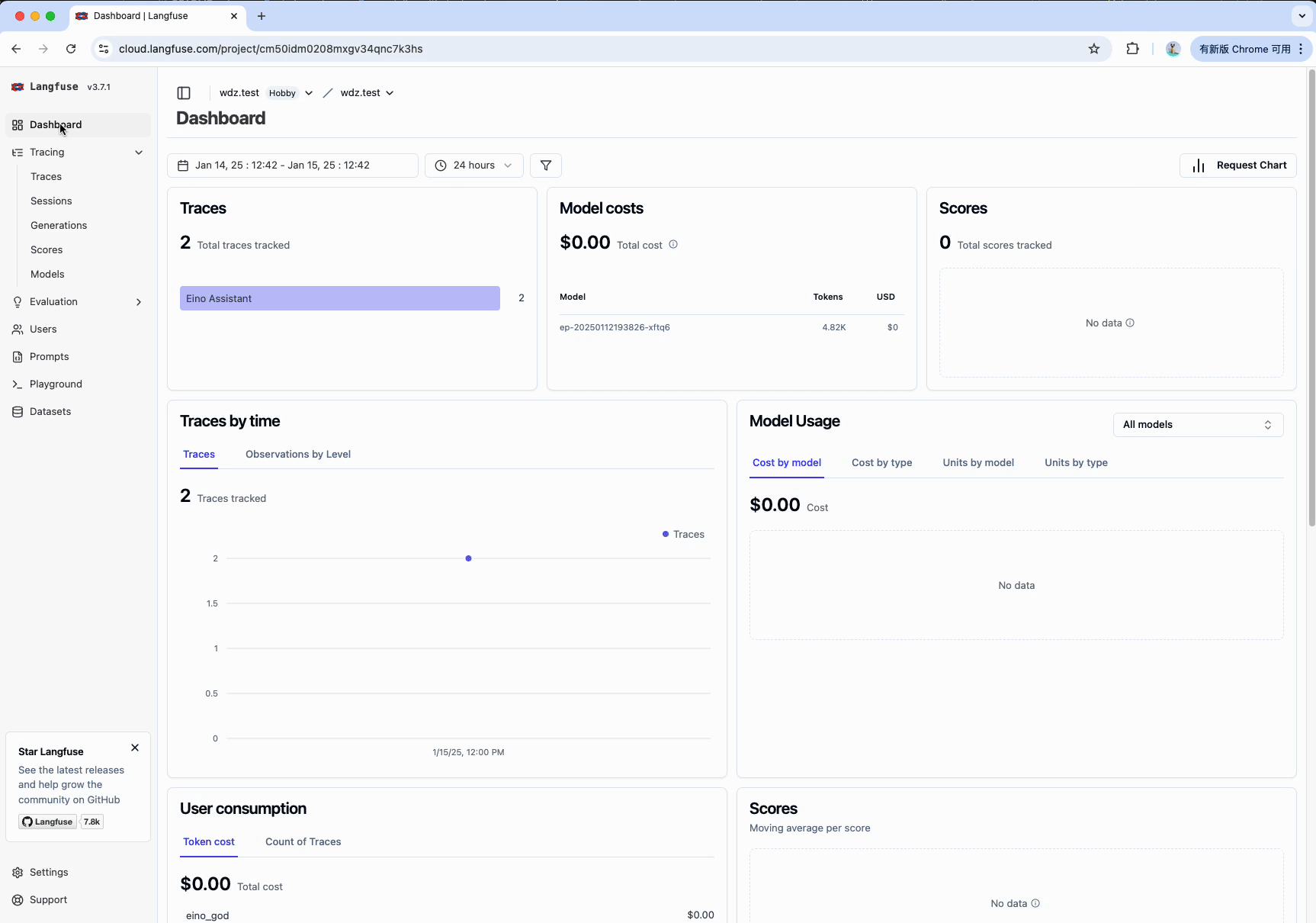

• Langfuse: set LANGFUSE_PUBLIC_KEY and LANGFUSE_SECRET_KEY to inspect trace details



Related Links

Project: https://github.com/cloudwego/eino, https://github.com/cloudwego/eino-ext

Eino User Manual: https://www.cloudwego.io/docs/eino/

Website: https://www.cloudwego.io
