AgenticToolsNode & Tool User Guide [Beta]

💡 This feature is available starting from v0.9. This document is based on the current main branch source code, with code primarily located in compose/agentic_tools_node.go, compose/tool_node.go, components/tool/interface.go, and schema/tool.go.

Introduction

AgenticToolsNode is the tool execution node on the agentic message path in Eino. It receives *schema.AgenticMessage, extracts tool calls from the FunctionToolCall content blocks, leverages ToolsNode’s execution capabilities to perform local tool execution, and then converts the results into FunctionToolResult content blocks for return.

It is not responsible for “deciding which tool to call”. Tool selection is done by the upstream AgenticModel; AgenticToolsNode only executes the corresponding tools based on the function tool calls in the input message.

💡 AgenticToolsNode is an agentic wrapper layer around ToolsNode, so it reuses ToolsNodeConfig, ToolsNodeOption, tool aliases, exception handling, execution order, argument handlers, and tool middleware capabilities.

AgenticToolsNode Definition

Code location: compose/agentic_tools_node.go

func NewAgenticToolsNode(ctx context.Context, conf *ToolsNodeConfig) (*AgenticToolsNode, error)

type AgenticToolsNode struct {
    inner *ToolsNode
}

func (a *AgenticToolsNode) Invoke(ctx context.Context, input *schema.AgenticMessage, opts ...ToolsNodeOption) ([]*schema.AgenticMessage, error)

func (a *AgenticToolsNode) Stream(ctx context.Context, input *schema.AgenticMessage, opts ...ToolsNodeOption) (*schema.StreamReader[[]*schema.AgenticMessage], error)

Input/Output rules:

MethodInputOutput
Invoke
assistant message containing one or more
FunctionToolCall
blocks		multiple user messages, each containing one
FunctionToolResult
or
ToolSearchFunctionToolResult
block
Stream
assistant message containing one or more
FunctionToolCall
blocks
StreamReader
, each chunk is
[]*schema.AgenticMessage

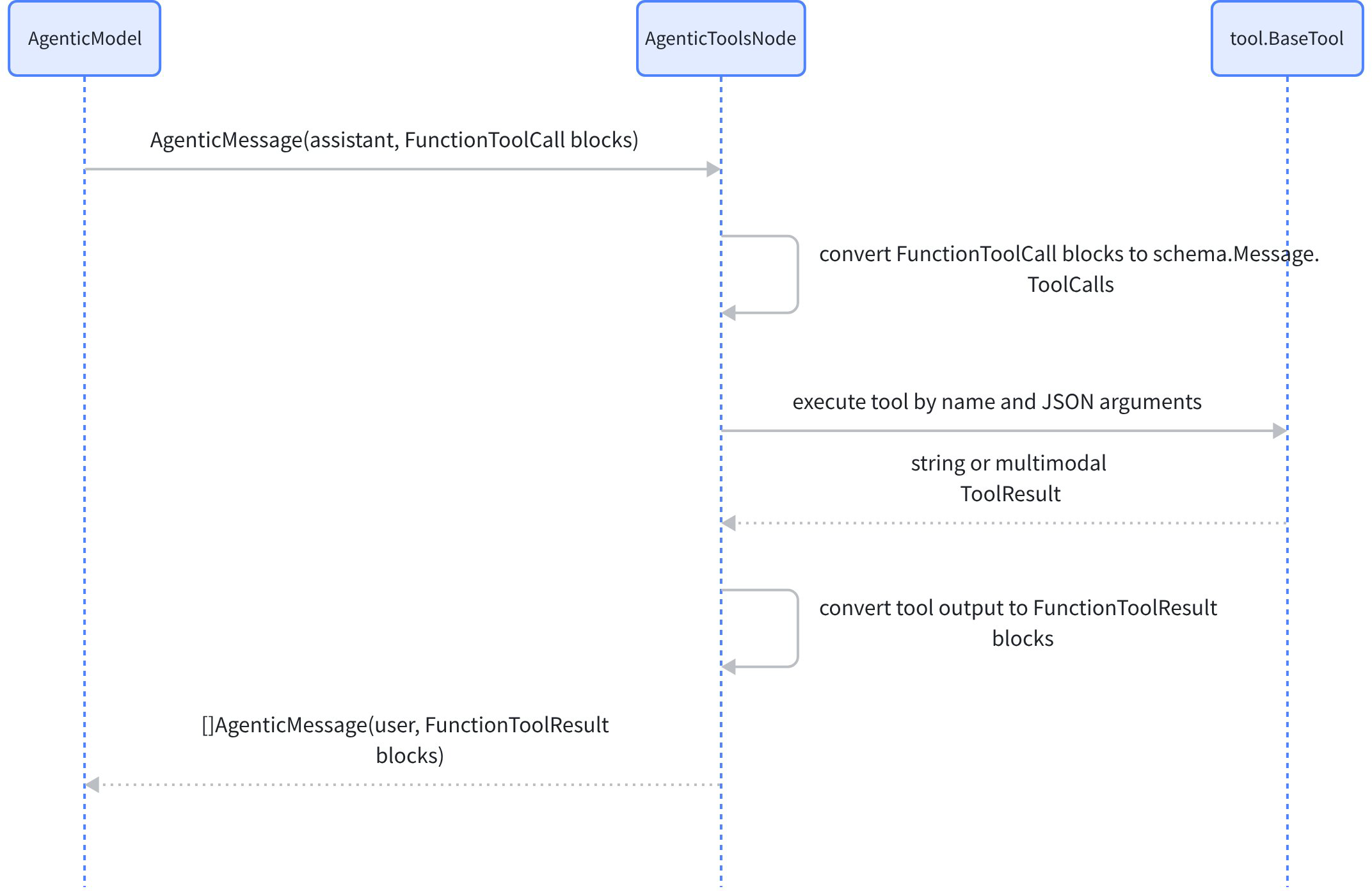

Execution Flow

Core conversion logic:

  • Only processes blocks with ContentBlockTypeFunctionToolCall type and non-nil FunctionToolCall.
  • FunctionToolCall.CallID is converted to schema.ToolCall.ID for correlating tool results.
  • Standard tool output is converted to text blocks in FunctionToolResult.Content.
  • Enhanced tool output is converted to text/image/audio/video/file blocks in FunctionToolResult.Content.
  • Tool search results are converted to ToolSearchFunctionToolResult blocks.
  • The output message role is schema.AgenticRoleTypeUser.

ToolsNodeConfig

Code location: compose/tool_node.go

type ToolsNodeConfig struct {
    Tools                []tool.BaseTool
    ToolAliases          map[string]ToolAliasConfig
    UnknownToolsHandler  func(ctx context.Context, name, input string) (string, error)
    ExecuteSequentially  bool
    ToolArgumentsHandler func(ctx context.Context, name, arguments string) (string, error)
    ToolCallMiddlewares  []ToolMiddleware
}
FieldDescription
Tools
List of executable tools. Each tool must implement
tool.BaseTool
and at least one execution interface
ToolAliases
Tool name aliases and argument alias configuration for compatibility with non-standard names generated by models
UnknownToolsHandler
Handles unknown tools hallucinated by the model; raises an error for unknown tools when not set
ExecuteSequentially
true
means execute tool calls sequentially in order; default
false
executes in parallel
ToolArgumentsHandler
Called after argument alias processing and before tool execution; can be used for argument cleaning or completion
ToolCallMiddlewares
Tool execution middleware, supporting standard and enhanced, non-streaming and streaming tools

ToolsNodeOption

type ToolsNodeOption func(o *toolsNodeOptions)

func WithToolOption(opts ...tool.Option) ToolsNodeOption
func WithToolList(tool ...tool.BaseTool) ToolsNodeOption
func WithToolAliases(toolAliases map[string]ToolAliasConfig) ToolsNodeOption

WithToolList and WithToolAliases are call-level override configurations:

  • WithToolList: Replaces the tool list for the current call.
  • WithToolAliases combined with WithToolList: Configures aliases for dynamic tool lists.
  • WithToolAliases used alone: Replaces the global alias configuration while keeping the original tool list.

Tool alias

Code location: compose/tool_node.go

type ToolAliasConfig struct {
    NameAliases      []string
    ArgumentsAliases map[string][]string
}

Semantic description:

ConfigDescription
NameAliases
Tool name aliases. When the model returns an alias, it will be resolved to the canonical tool name
ArgumentsAliases
Argument aliases. Key is the canonical argument name, value is a list of aliases

Example:

toolsNode, err := compose.NewAgenticToolsNode(ctx, &compose.ToolsNodeConfig{
    Tools: []tool.BaseTool{searchTool},
    ToolAliases: map[string]compose.ToolAliasConfig{
        "search": {
            NameAliases: []string{"web_search", "lookup"},
            ArgumentsAliases: map[string][]string{
                "query": {"q", "keyword"},
                "limit": {"count", "max_results"},
            },
        },
    },
})

Argument alias processing rules:

  • Only processes keys in the top-level JSON object.
  • Returns the original value when the string is empty, not an object, or JSON parsing fails.
  • When the canonical key already exists, the alias will not override the canonical value.
  • Alias remapping occurs before ToolArgumentsHandler.
  • Alias configuration validates: empty aliases, empty canonical keys, canonical keys containing ., aliases conflicting with schema properties, and the same alias mapping to multiple canonical names.

Tool Interface

Eino currently does not export a unified interface named Tool. Tool capabilities are composed of the following interfaces in the components/tool package.

Code location: components/tool/interface.go

type BaseTool interface {
    Info(ctx context.Context) (*schema.ToolInfo, error)
}

type InvokableTool interface {
    BaseTool
    InvokableRun(ctx context.Context, argumentsInJSON string, opts ...Option) (string, error)
}

type StreamableTool interface {
    BaseTool
    StreamableRun(ctx context.Context, argumentsInJSON string, opts ...Option) (*schema.StreamReader[string], error)
}

type EnhancedInvokableTool interface {
    BaseTool
    InvokableRun(ctx context.Context, toolArgument *schema.ToolArgument, opts ...Option) (*schema.ToolResult, error)
}

type EnhancedStreamableTool interface {
    BaseTool
    StreamableRun(ctx context.Context, toolArgument *schema.ToolArgument, opts ...Option) (*schema.StreamReader[*schema.ToolResult], error)
}

Interface layers:

InterfacePurpose
BaseTool
Provides tool metadata that can be passed to the model for tool recognition
InvokableTool
Non-streaming execution; input is a JSON string, returns a string
StreamableTool
Streaming execution; input is a JSON string, returns a string stream
EnhancedInvokableTool
Non-streaming enhanced tool; input is
*schema.ToolArgument
, returns multimodal
*schema.ToolResult
EnhancedStreamableTool
Streaming enhanced tool; returns a
*schema.ToolResult
stream

💡 If a tool implements both the standard interface and the enhanced interface, ToolsNode will prioritize using the enhanced interface to preserve structured multimodal results.

ToolInfo

Code location: schema/tool.go

type ToolInfo struct {
    Name  string
    Desc  string
    Extra map[string]any
    *ParamsOneOf
}

Field descriptions:

FieldDescription
Name
Unique tool name; should be concise and unique within the tool set
Desc
Tells the model when, why, and how to use the tool; can include a few examples
Extra
Additional metadata, defined by component implementations or business customizations
ParamsOneOf
Parameter definition; can be constructed via
schema.NewParamsOneOfByParams
or
schema.NewParamsOneOfByJSONSchema
;
nil
means no parameters

ToolArgument and ToolResult

Enhanced tools use structured input and multimodal output.

type ToolArgument struct {
    Text string
}

type ToolResult struct {
    Parts []ToolOutputPart
}

ToolOutputPart can represent text, image, audio, video, file, and tool search results. AgenticToolsNode converts enhanced output into multimodal blocks in FunctionToolResult.Content.

FunctionToolCall and FunctionToolResult

The input to AgenticToolsNode comes from FunctionToolCall blocks in schema.AgenticMessage:

type FunctionToolCall struct {
    CallID    string
    Name      string
    Arguments string
}

Tool execution results are converted to FunctionToolResult:

type FunctionToolResult struct {
    CallID  string
    Name    string
    Content []*FunctionToolResultContentBlock
}

FunctionToolResultContentBlock supports five content types: text, image, audio, video, and file. The current implementation no longer uses the Result string field.

Standalone Usage Example

toolsNode, err := compose.NewAgenticToolsNode(ctx, &compose.ToolsNodeConfig{
    Tools: []tool.BaseTool{weatherTool},
})
if err != nil {
    return err
}

input := &schema.AgenticMessage{
    Role: schema.AgenticRoleTypeAssistant,
    ContentBlocks: []*schema.ContentBlock{
        schema.NewContentBlock(&schema.FunctionToolCall{
            CallID:    "call_1",
            Name:      "get_weather",
            Arguments: `{"city":"Shenzhen","date":"tomorrow"}`,
        }),
    },
}

messages, err := toolsNode.Invoke(ctx, input)
if err != nil {
    return err
}

Output example:

[]*schema.AgenticMessage{
    {
        Role: schema.AgenticRoleTypeUser,
        ContentBlocks: []*schema.ContentBlock{
            schema.NewContentBlock(&schema.FunctionToolResult{
                CallID: "call_1",
                Name:   "get_weather",
                Content: []*schema.FunctionToolResultContentBlock{
                    {
                        Type: schema.FunctionToolResultContentBlockTypeText,
                        Text: &schema.UserInputText{Text: "sunny"},
                    },
                },
            }),
        },
    },
}

Using in Orchestration

Chain

Code location: compose/chain.go

func (c *Chain[I, O]) AppendAgenticToolsNode(node *AgenticToolsNode, opts ...GraphAddNodeOpt) *Chain[I, O]

chain := compose.NewChain[*schema.AgenticMessage, []*schema.AgenticMessage]()
chain.AppendAgenticToolsNode(toolsNode)

Graph

Code location: compose/graph.go

func (g *graph) AddAgenticToolsNode(key string, node *AgenticToolsNode, opts ...GraphAddNodeOpt) error

graph := compose.NewGraph[*schema.AgenticMessage, []*schema.AgenticMessage]()
err := graph.AddAgenticToolsNode("tools", toolsNode)
if err != nil {
    return err
}

Workflow, Parallel, ChainBranch

func (wf *Workflow[I, O]) AddAgenticToolsNode(key string, tools *AgenticToolsNode, opts ...GraphAddNodeOpt) *WorkflowNode

func (p *Parallel) AddAgenticToolsNode(outputKey string, node *AgenticToolsNode, opts ...GraphAddNodeOpt) *Parallel

func (cb *ChainBranch) AddAgenticToolsNode(key string, node *AgenticToolsNode, opts ...GraphAddNodeOpt) *ChainBranch

Callback

Code location: utils/callbacks/template.go

type AgenticToolsNodeCallbackHandlers struct {
    OnStart               func(ctx context.Context, info *callbacks.RunInfo, input *schema.AgenticMessage) context.Context
    OnEnd                 func(ctx context.Context, info *callbacks.RunInfo, input []*schema.AgenticMessage) context.Context
    OnEndWithStreamOutput func(ctx context.Context, info *callbacks.RunInfo, output *schema.StreamReader[[]*schema.AgenticMessage]) context.Context
    OnError               func(ctx context.Context, info *callbacks.RunInfo, err error) context.Context
}

Registration example:

handler := callbackHelper.NewHandlerHelper().
    AgenticToolsNode(&callbackHelper.AgenticToolsNodeCallbackHandlers{
        OnStart: func(ctx context.Context, info *callbacks.RunInfo, input *schema.AgenticMessage) context.Context {
            fmt.Printf("tool call blocks: %d\n", len(input.ContentBlocks))
            return ctx
        },
        OnEnd: func(ctx context.Context, info *callbacks.RunInfo, output []*schema.AgenticMessage) context.Context {
            fmt.Printf("tool results: %d\n", len(output))
            return ctx
        },
    }).
    Handler()

result, err := runnable.Invoke(ctx, input, compose.WithCallbacks(handler))

Getting ToolCallID

Code location: compose/tool_node.go

func GetToolCallID(ctx context.Context) string

Within a tool function body or tool callback handler, you can use compose.GetToolCallID(ctx) to get the current tool call ID.

func (t *MyTool) InvokableRun(ctx context.Context, args string, opts ...tool.Option) (string, error) {
    callID := compose.GetToolCallID(ctx)
    // An empty callID indicates the current ctx is not in a tool call execution context, or the context value type does not match.
    return callID, nil
}

Usage Recommendations

  • In documentation and code, refer to tool.BaseTool, InvokableTool, StreamableTool, EnhancedInvokableTool, EnhancedStreamableTool—do not use an exported Tool interface that does not exist in the source code.
  • If a tool may return images, audio, video, or files, prefer implementing the enhanced interface to avoid flattening multimodal results into a string.
  • Multiple tool calls execute in parallel by default; set ExecuteSequentially: true when order needs to be preserved or tools have side-effect dependencies.
  • When using ToolArgumentsHandler for argument cleaning, note that it executes after argument alias remapping.
  • UnknownToolsHandler is suitable as a fallback for tool names hallucinated by the model, but should not mask real configuration errors.

Existing Implementations

  1. Google Search Tool: Tool implementation based on Google search Tool - Googlesearch
  2. DuckDuckGo Search Tool: Tool implementation based on DuckDuckGo search Tool - DuckDuckGoSearch
  3. MCP: Use MCP server as a tool Eino Tool - MCP

Tool Implementation Methods
